library(zzlongplot)
library(ggplot2)
library(dplyr)
#>
#> Attaching package: 'dplyr'
#> The following objects are masked from 'package:stats':
#>
#>     filter, lag
#> The following objects are masked from 'package:base':
#>
#>     intersect, setdiff, setequal, union

Introduction to CDISC Standards

The Clinical Data Interchange Standards Consortium (CDISC) provides global standards for clinical research data. The zzlongplot package includes built-in support for CDISC naming conventions and standards to streamline clinical trial data visualization.

This vignette covers: - CDISC variable naming conventions - Automatic variable detection and mapping - Compliance with ADaM (Analysis Data Model) standards - Best practices for regulatory submissions

CDISC Variable Naming Conventions

Core Analysis Variables

CDISC defines standard variable names for clinical trial analysis:

Variable	Description	Example Values
SUBJID	Subject Identifier	“001-001”, “001-002”
USUBJID	Unique Subject Identifier	“STUDY001-001-001”
AVISITN	Analysis Visit Number	0, 1, 2, 3, 4
VISIT	Visit Name	“Screening”, “Baseline”, “Week 4”
AVAL	Analysis Value	Numeric endpoint values
CHG	Change from Baseline	Calculated change values
PCHG	Percent Change from Baseline	Percentage change values
TRT01P	Planned Treatment	“Placebo”, “Drug A”, “Drug B”
TRT01A	Actual Treatment	“Placebo”, “Drug A”, “Drug B”
SAFFL	Safety Population Flag	“Y”, “N”
FASFL	Full Analysis Set Flag	“Y”, “N”

Creating CDISC-Compliant Data

Let’s create a dataset following CDISC conventions:

# Create CDISC-compliant dataset
set.seed(456)

cdisc_data <- expand.grid(
  USUBJID = paste0("STUDY001-001-", sprintf("%03d", 1:50)),
  AVISITN = c(0, 1, 2, 3, 4, 5)  # Baseline + 5 visits
) |>
  mutate(
    # Subject identifier (shortened)
    SUBJID = sub("STUDY001-", "", USUBJID),

    # Visit information
    VISIT = case_when(
      AVISITN == 0 ~ "Baseline",
      AVISITN == 1 ~ "Week 2",
      AVISITN == 2 ~ "Week 4",
      AVISITN == 3 ~ "Week 8",
      AVISITN == 4 ~ "Week 12",
      AVISITN == 5 ~ "Week 16"
    ),

    # Treatment assignments
    TRT01P = rep(c("Placebo", "Drug A 5mg", "Drug A 10mg", "Drug A 20mg"),
                 length.out = n()),
    TRT01A = TRT01P,  # Assume planned = actual for simplicity

    # Population flags
    SAFFL = "Y",
    FASFL = "Y",

    # Analysis values - simulate depression rating scale (lower = better)
    AVAL = case_when(
      TRT01P == "Placebo" ~ pmax(0, rnorm(n(), mean = 20 + AVISITN * 0.5, sd = 5)),
      TRT01P == "Drug A 5mg" ~ pmax(0, rnorm(n(), mean = 20 - AVISITN * 1, sd = 4.5)),
      TRT01P == "Drug A 10mg" ~ pmax(0, rnorm(n(), mean = 20 - AVISITN * 2, sd = 4)),
      TRT01P == "Drug A 20mg" ~ pmax(0, rnorm(n(), mean = 20 - AVISITN * 3, sd = 4))
    ),

    # Parameter information
    PARAM = "Hamilton Depression Rating Scale Total Score",
    PARAMCD = "HAMDTOT"
  ) |>
  # Calculate change from baseline
  group_by(USUBJID) %>%
  mutate(
    BASE = AVAL[AVISITN == 0],
    CHG = ifelse(AVISITN == 0, NA, AVAL - BASE),
    PCHG = ifelse(AVISITN == 0, NA, (AVAL - BASE) / BASE * 100)
  ) |>
  ungroup() |>
  arrange(USUBJID, AVISITN)

head(cdisc_data, 10)
#> # A tibble: 10 × 14
#>    USUBJID    AVISITN SUBJID VISIT TRT01P TRT01A SAFFL FASFL  AVAL PARAM PARAMCD
#>    <fct>        <dbl> <chr>  <chr> <chr>  <chr>  <chr> <chr> <dbl> <chr> <chr>
#>  1 STUDY001-…       0 001-0… Base… Place… Place… Y     Y      13.3 Hami… HAMDTOT
#>  2 STUDY001-…       1 001-0… Week… Drug … Drug … Y     Y      22.2 Hami… HAMDTOT
#>  3 STUDY001-…       2 001-0… Week… Place… Place… Y     Y      21.6 Hami… HAMDTOT
#>  4 STUDY001-…       3 001-0… Week… Drug … Drug … Y     Y      13.7 Hami… HAMDTOT
#>  5 STUDY001-…       4 001-0… Week… Place… Place… Y     Y      23.5 Hami… HAMDTOT
#>  6 STUDY001-…       5 001-0… Week… Drug … Drug … Y     Y      19.9 Hami… HAMDTOT
#>  7 STUDY001-…       0 001-0… Base… Drug … Drug … Y     Y      21.8 Hami… HAMDTOT
#>  8 STUDY001-…       1 001-0… Week… Drug … Drug … Y     Y      21.5 Hami… HAMDTOT
#>  9 STUDY001-…       2 001-0… Week… Drug … Drug … Y     Y      16.1 Hami… HAMDTOT
#> 10 STUDY001-…       3 001-0… Week… Drug … Drug … Y     Y      11.4 Hami… HAMDTOT
#> # ℹ 3 more variables: BASE <dbl>, CHG <dbl>, PCHG <dbl>

Automatic CDISC Variable Recognition

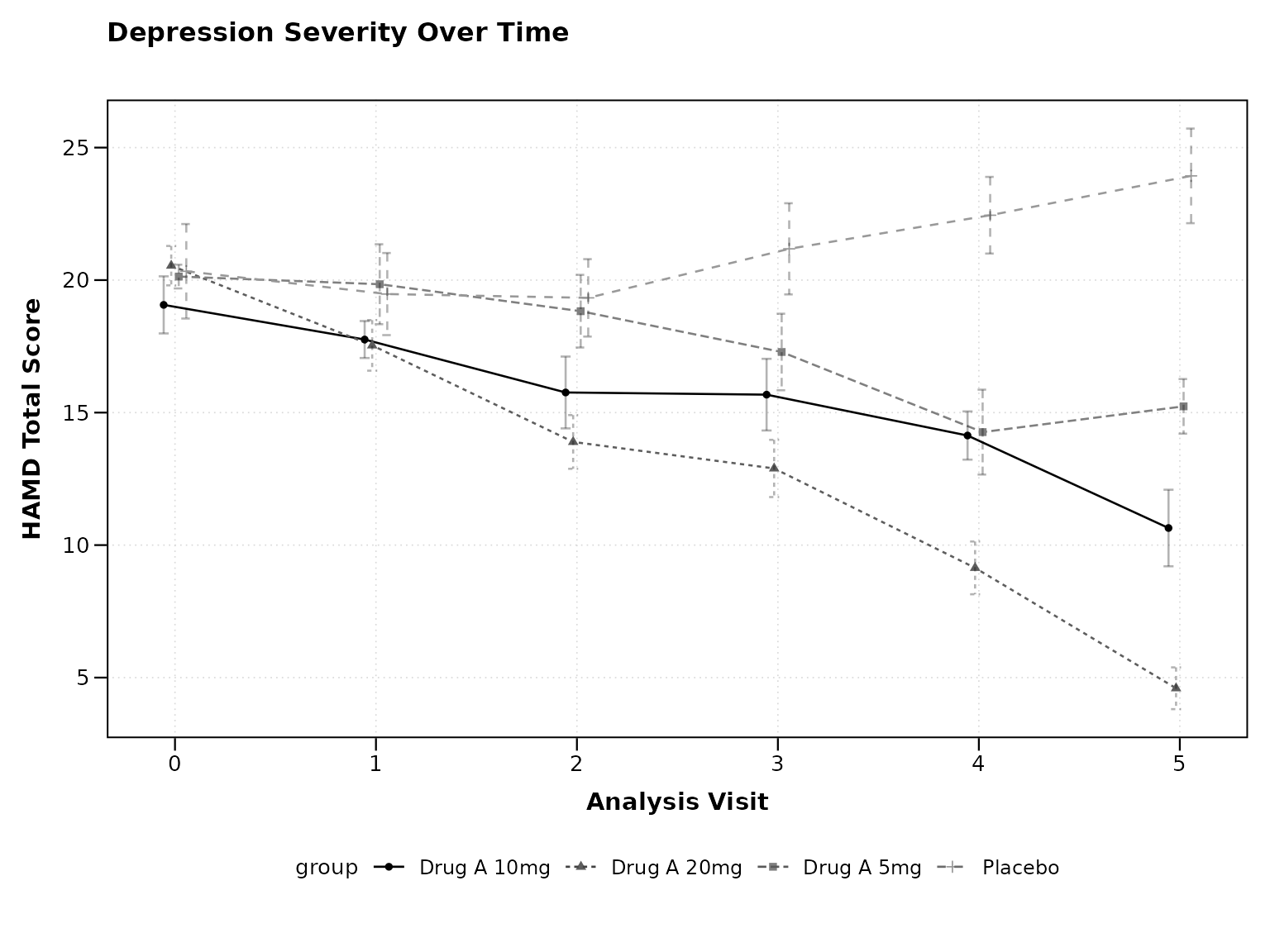

Basic CDISC Plot

The package automatically recognizes CDISC variable names:

# Automatic CDISC recognition
p1 <- lplot(
  cdisc_data,
  form = AVAL ~ AVISITN | TRT01P,
  cluster_var = "USUBJID",  # Uses USUBJID (standard)
  baseline_value = 0,
  xlab = "Analysis Visit",
  ylab = "HAMD Total Score",
  title = "Depression Severity Over Time"
)
#> Warning: The `size` argument of `element_line()` is deprecated as of ggplot2 3.4.0.
#> ℹ Please use the `linewidth` argument instead.
#> ℹ The deprecated feature was likely used in the zzlongplot package.
#>   Please report the issue at <https://github.com/rgt47/zzlongplot/issues>.
#> This warning is displayed once per session.
#> Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
#> generated.
#> Warning: The `size` argument of `element_rect()` is deprecated as of ggplot2 3.4.0.
#> ℹ Please use the `linewidth` argument instead.
#> ℹ The deprecated feature was likely used in the zzlongplot package.
#>   Please report the issue at <https://github.com/rgt47/zzlongplot/issues>.
#> This warning is displayed once per session.
#> Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
#> generated.

print(p1)

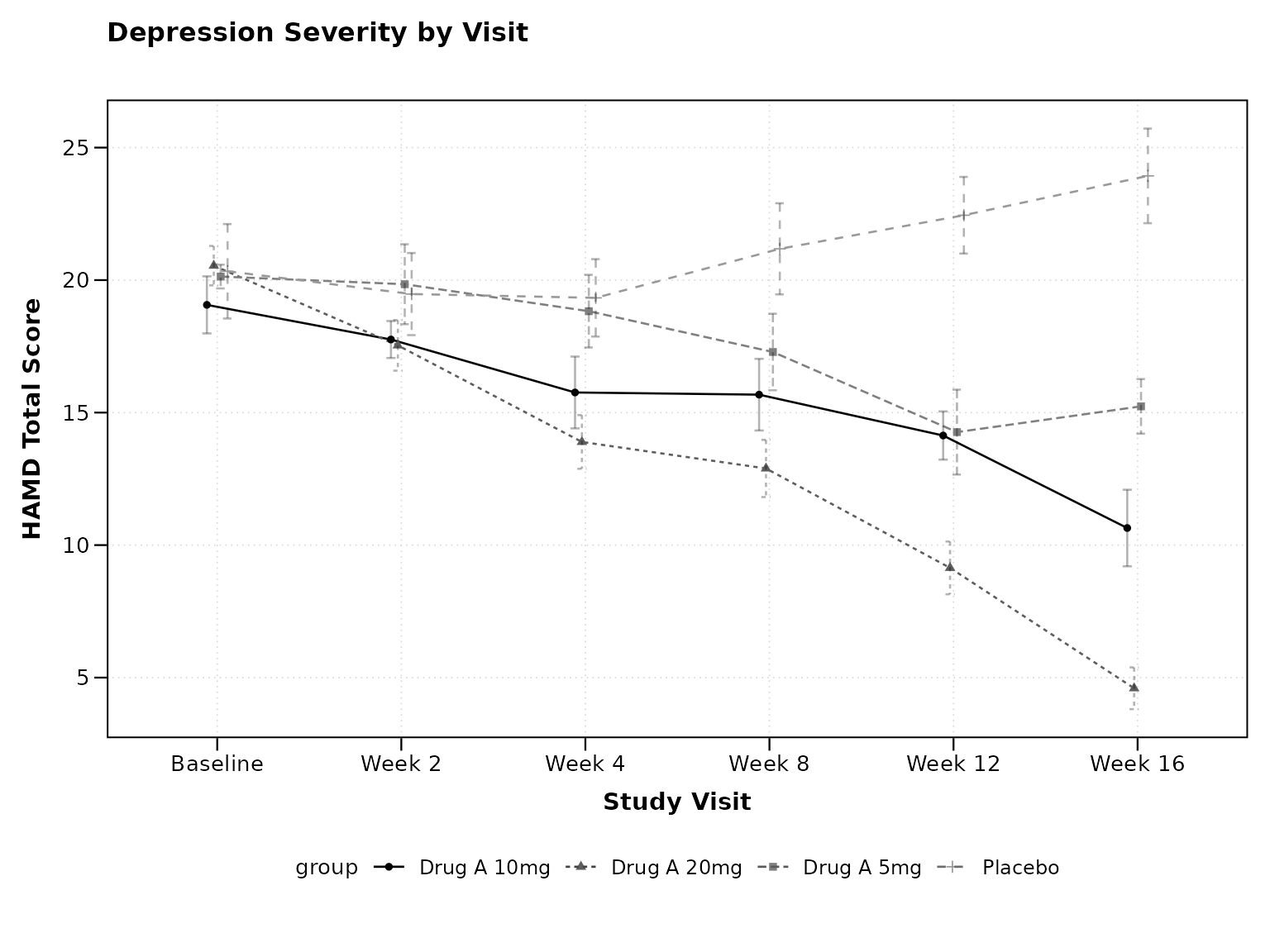

Using VISIT Names

CDISC often uses descriptive visit names:

# Using CDISC visit names
p2 <- lplot(
  cdisc_data,
  form = AVAL ~ VISIT | TRT01P,
  cluster_var = "USUBJID",
  baseline_value = "Baseline",
  xlab = "Study Visit",
  ylab = "HAMD Total Score",
  title = "Depression Severity by Visit"
)

print(p2)

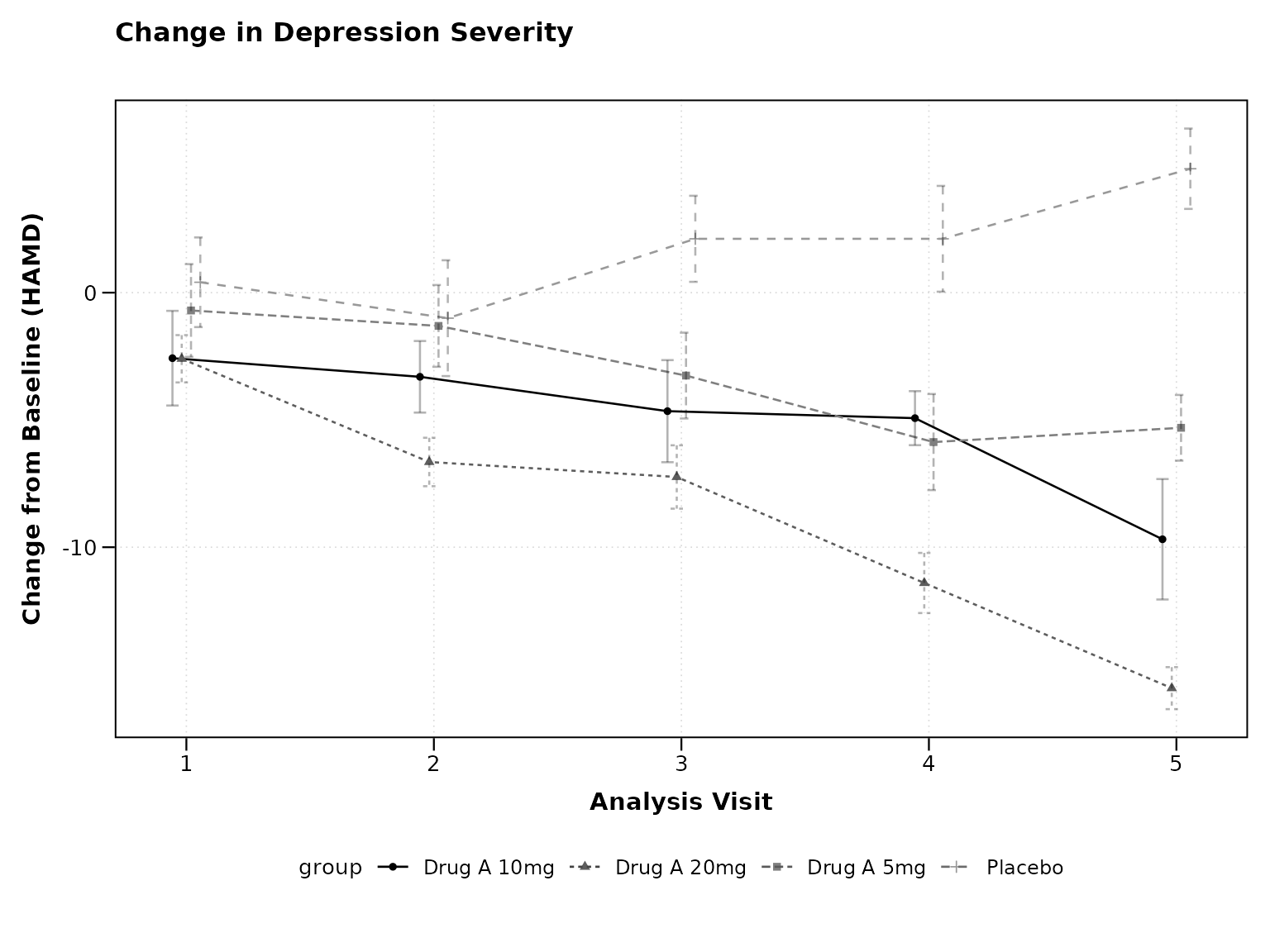

Change from Baseline (CHG)

CDISC datasets typically include pre-calculated CHG values:

# Using pre-calculated CHG values
cdisc_chg <- cdisc_data %>% filter(AVISITN > 0)  # Exclude baseline for CHG

p3 <- lplot(
  cdisc_chg,
  form = CHG ~ AVISITN | TRT01P,
  cluster_var = "USUBJID",
  baseline_value = 1,  # First post-baseline visit
  xlab = "Analysis Visit",
  ylab = "Change from Baseline (HAMD)",
  title = "Change in Depression Severity"
)

print(p3)

CDISC Variable Detection Helper

Suggest Clinical Variables

The package can automatically detect likely CDISC variables:

# Auto-detect CDISC variables
suggestions <- suggest_clinical_vars(cdisc_data)
#> CDISC Variable Detection Results:
#> =================================
#>
#> Suggested Formula: AVAL ~ AVISITN | TRT01P
#> Cluster Variable: USUBJID
#> Baseline Value: 0
#>
#> Detected Variables:
#>   subject_id: USUBJID, SUBJID
#>   visit: AVISITN, VISIT
#>   analysis_value: AVAL
#>   treatment: TRT01P, TRT01A
#>   change: CHG, PCHG
#>   population: SAFFL, FASFL
print(suggestions)
#> $suggested_formula
#> [1] "AVAL ~ AVISITN | TRT01P"
#>
#> $detected_vars
#> $detected_vars$subject_id
#>   primary secondary
#> "USUBJID"  "SUBJID"
#>
#> $detected_vars$visit
#>   numeric character
#> "AVISITN"   "VISIT"
#>
#> $detected_vars$analysis_value
#> primary
#>  "AVAL"
#>
#> $detected_vars$treatment
#>  planned   actual
#> "TRT01P" "TRT01A"
#>
#> $detected_vars$change
#> primary percent
#>   "CHG"  "PCHG"
#>
#> $detected_vars$population
#>   safety efficacy
#>  "SAFFL"  "FASFL"
#>
#>
#> $cluster_var
#> [1] "USUBJID"
#>
#> $baseline_value
#> [1] 0
#>
#> $warnings
#> character(0)

Validate CDISC Compliance

# Check CDISC compliance
compliance <- validate_cdisc_data(cdisc_data)
print(compliance)
#> $compliance_score
#> [1] 100
#>
#> $score_breakdown
#> $score_breakdown$required_vars
#> [1] 25
#>
#> $score_breakdown$subject_id
#> [1] 20
#>
#> $score_breakdown$visit_vars
#> [1] 15
#>
#> $score_breakdown$analysis_values
#> [1] 15
#>
#> $score_breakdown$change_vars
#> [1] 10
#>
#> $score_breakdown$treatment_vars
#> [1] 10
#>
#> $score_breakdown$population_flags
#> [1] 5
#>
#>
#> $issues
#> character(0)
#>
#> $recommendations
#> character(0)
#>
#> $max_possible_score
#> [1] 100
#>
#> $actual_score
#> [1] 100

ADaM Standards Compliance

Analysis Data Model (ADaM)

ADaM is the CDISC standard for analysis datasets. Key requirements include:

1. Required Variables

Every ADaM dataset should have: - USUBJID: Unique subject identifier - SUBJID: Subject identifier within study - STUDYID: Study identifier
- SITEID: Site identifier

# Add ADaM required variables
cdisc_adam <- cdisc_data %>%
  mutate(
    STUDYID = "STUDY001",
    SITEID = substr(SUBJID, 1, 3)  # Extract site from SUBJID
  )

# Verify required variables
required_vars <- c("USUBJID", "SUBJID", "STUDYID")
cat("Required ADaM variables present:",
    all(required_vars %in% names(cdisc_adam)), "\n")
#> Required ADaM variables present: TRUE

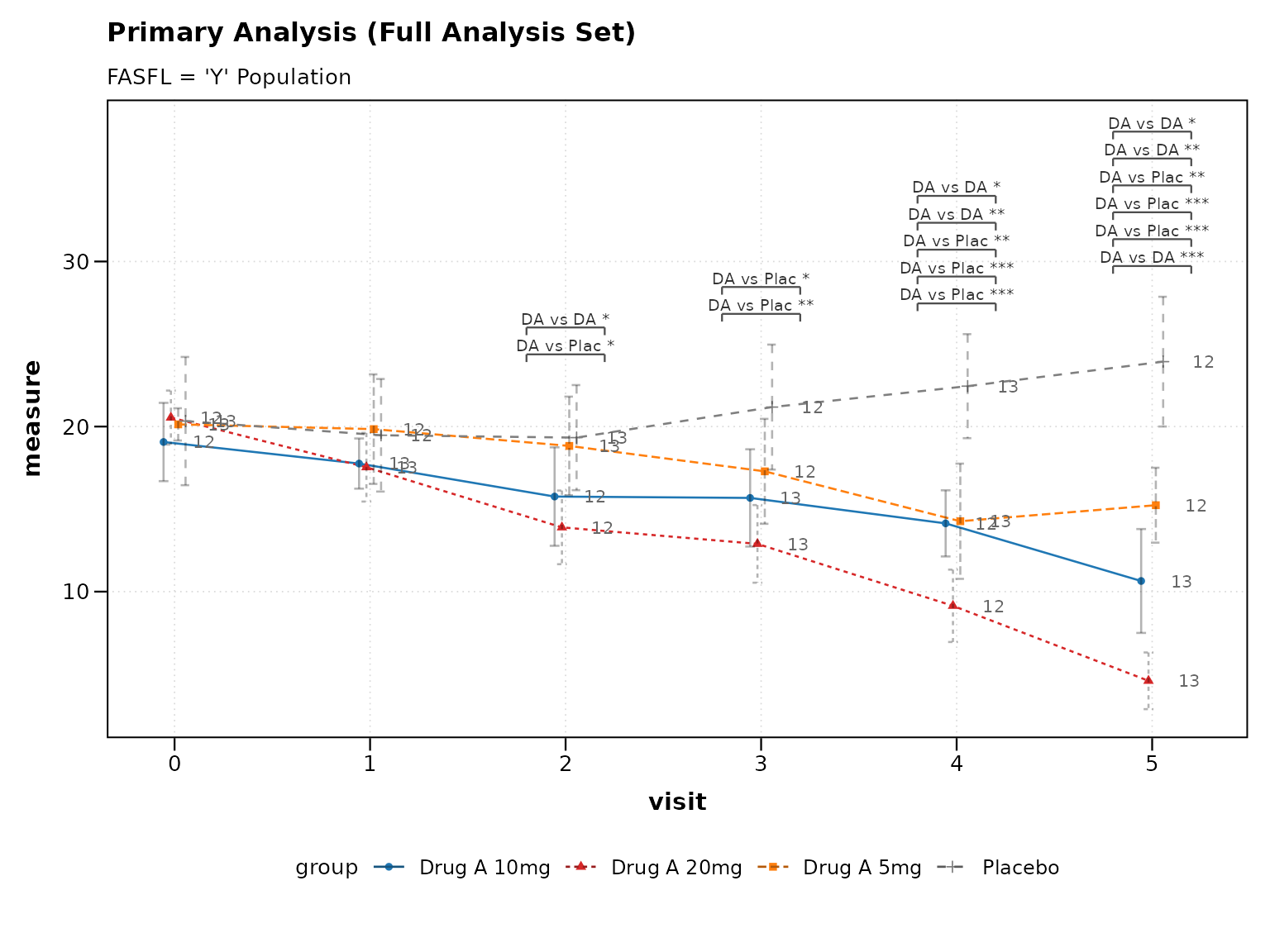

2. Analysis Flags

ADaM datasets include population analysis flags:

# Population-specific analysis
fasfl_data <- cdisc_adam %>% filter(FASFL == "Y")

p4 <- lplot(
  fasfl_data,
  form = AVAL ~ AVISITN | TRT01P,
  cluster_var = "USUBJID",
  baseline_value = 0,
  clinical_mode = TRUE,
  title = "Primary Analysis (Full Analysis Set)",
  subtitle = "FASFL = 'Y' Population"
)

print(p4)

3. Traceability

ADaM requires traceability to source data:

# Add traceability variables (example)
cdisc_trace <- cdisc_adam %>%
  mutate(
    # Source dataset references
    SRCDOM = "QS",        # Source domain (Questionnaires)
    SRCVAR = "QSSTRESN",  # Source variable
    SRCSEQ = row_number() # Source sequence
  )

Regulatory Submission Standards

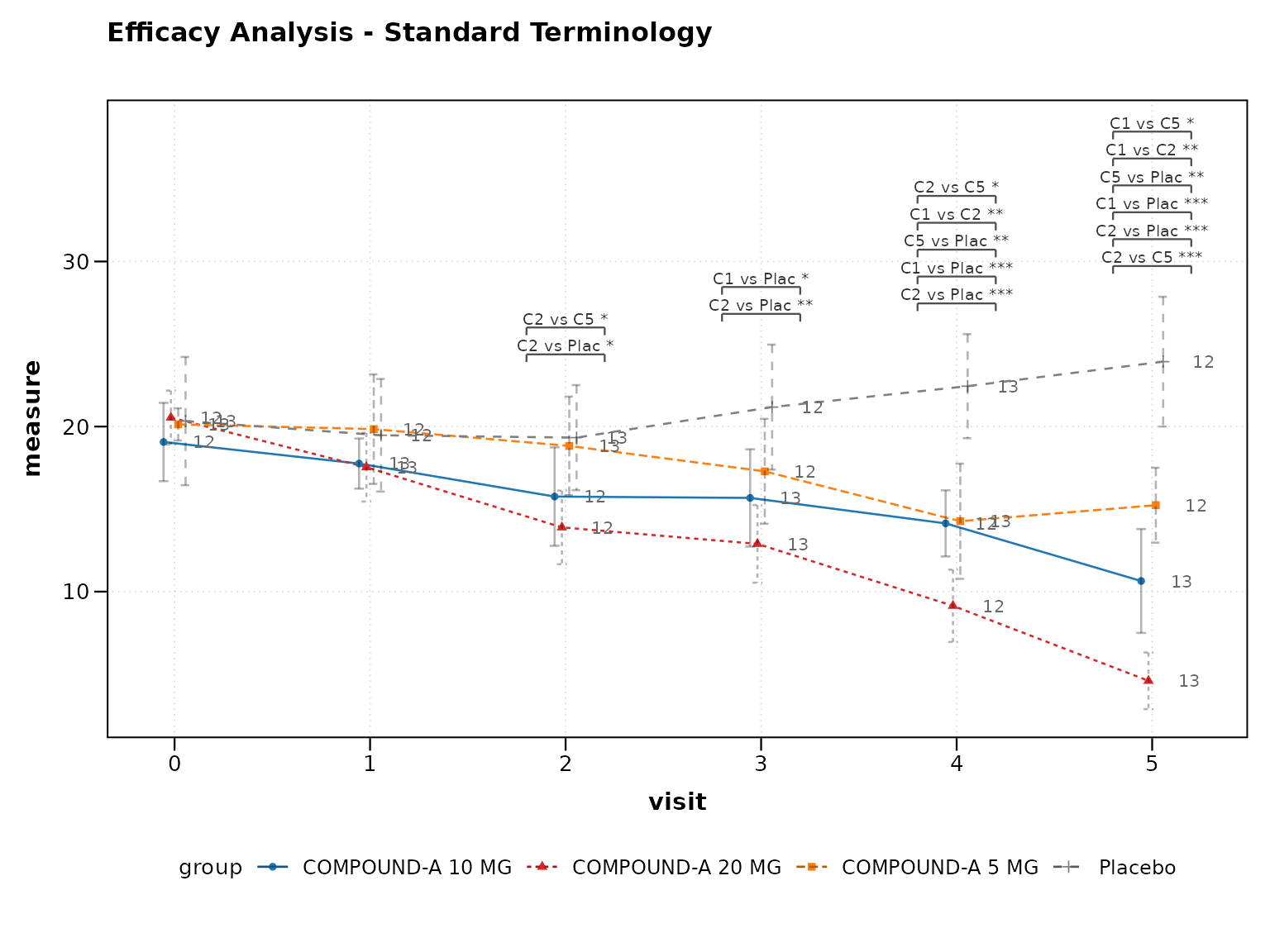

1. Consistent Terminology

Use CDISC controlled terminology:

# CDISC controlled terminology for treatments
cdisc_terminology <- cdisc_adam |>
  mutate(
    TRT01P_STD = case_match(
      TRT01P,
      "Placebo" ~ "Placebo",
      "Drug A 5mg" ~ "COMPOUND-A 5 MG",
      "Drug A 10mg" ~ "COMPOUND-A 10 MG",
      "Drug A 20mg" ~ "COMPOUND-A 20 MG"
    )
  )
#> Warning: There was 1 warning in `mutate()`.
#> ℹ In argument: `TRT01P_STD = case_match(...)`.
#> Caused by warning:
#> ! `case_match()` was deprecated in dplyr 1.2.0.
#> ℹ Please use `recode_values()` instead.

p5 <- lplot(
  cdisc_terminology,
  form = AVAL ~ AVISITN | TRT01P_STD,
  cluster_var = "USUBJID",
  baseline_value = 0,
  clinical_mode = TRUE,
  title = "Efficacy Analysis - Standard Terminology"
)

print(p5)

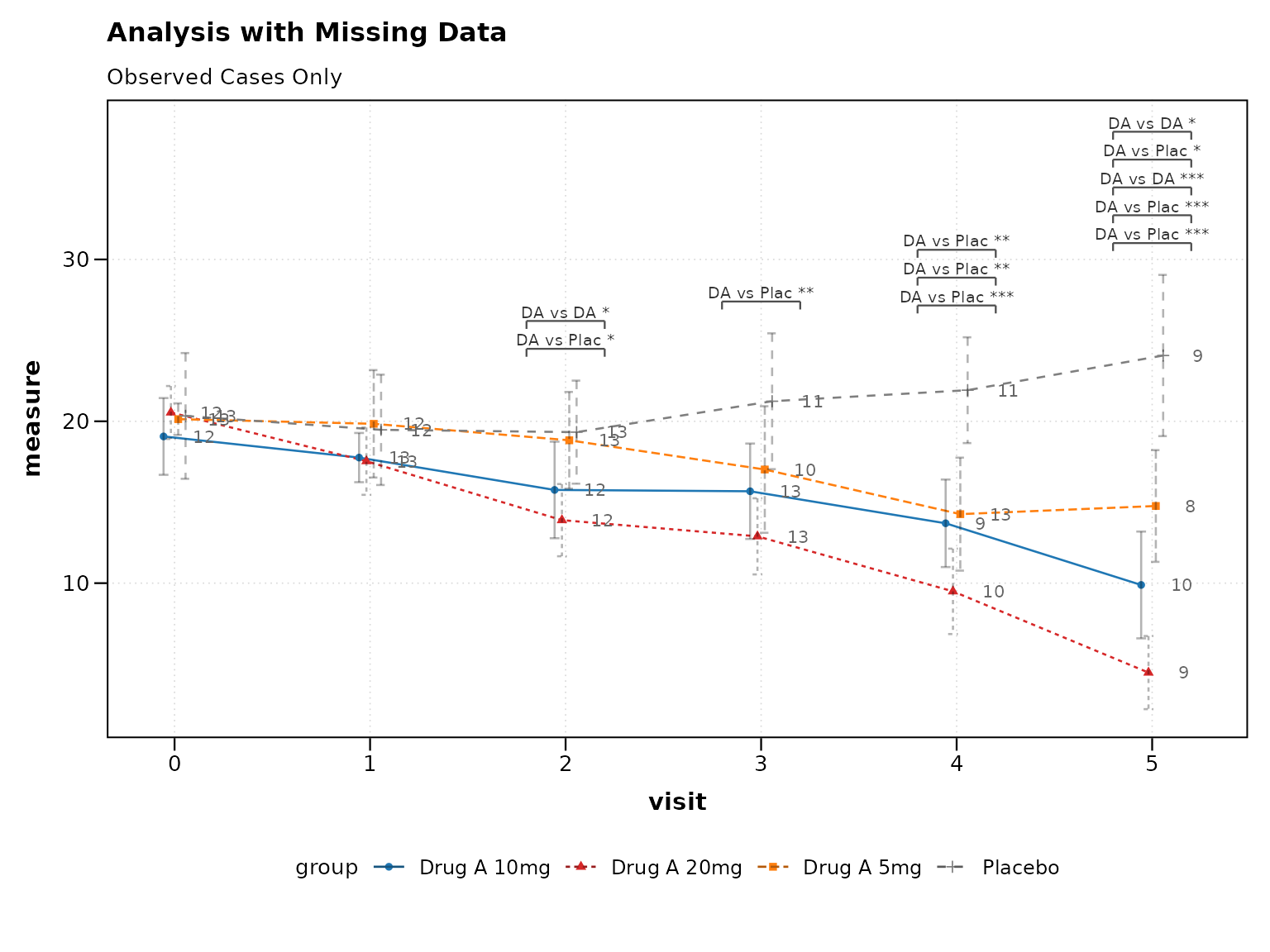

2. Missing Data Handling

CDISC requires explicit missing data handling:

# Add some missing data patterns
cdisc_missing <- cdisc_adam %>%
  mutate(
    # Simulate missing data (dropout pattern)
    AVAL = ifelse(
      AVISITN >= 3 & runif(n()) < 0.1 * (AVISITN - 2),
      NA,
      AVAL
    )
  )

# Plot showing missing data impact
p6 <- lplot(
  cdisc_missing,
  form = AVAL ~ AVISITN | TRT01P,
  cluster_var = "USUBJID",
  baseline_value = 0,
  clinical_mode = TRUE,
  title = "Analysis with Missing Data",
  subtitle = "Observed Cases Only"
)

print(p6)

Best Practices for CDISC Compliance

1. Standard Variable Names

Always use CDISC standard variable names:

# Good: CDISC standard names
good_plot <- lplot(
  cdisc_data,
  form = AVAL ~ AVISITN | TRT01P,
  cluster_var = "USUBJID",
  baseline_value = 0
)

# Avoid: Non-standard names
# bad_plot <- lplot(data, score ~ week | treatment, cluster_var = "id")

2. Population Flags

Use analysis population flags appropriately:

# Safety population analysis
safety_data <- cdisc_adam %>% filter(SAFFL == "Y")

# Full analysis set
fas_data <- cdisc_adam %>% filter(FASFL == "Y")

cat("Safety Population N =", length(unique(safety_data$USUBJID)), "\n")
#> Safety Population N = 50
cat("Full Analysis Set N =", length(unique(fas_data$USUBJID)), "\n")
#> Full Analysis Set N = 50

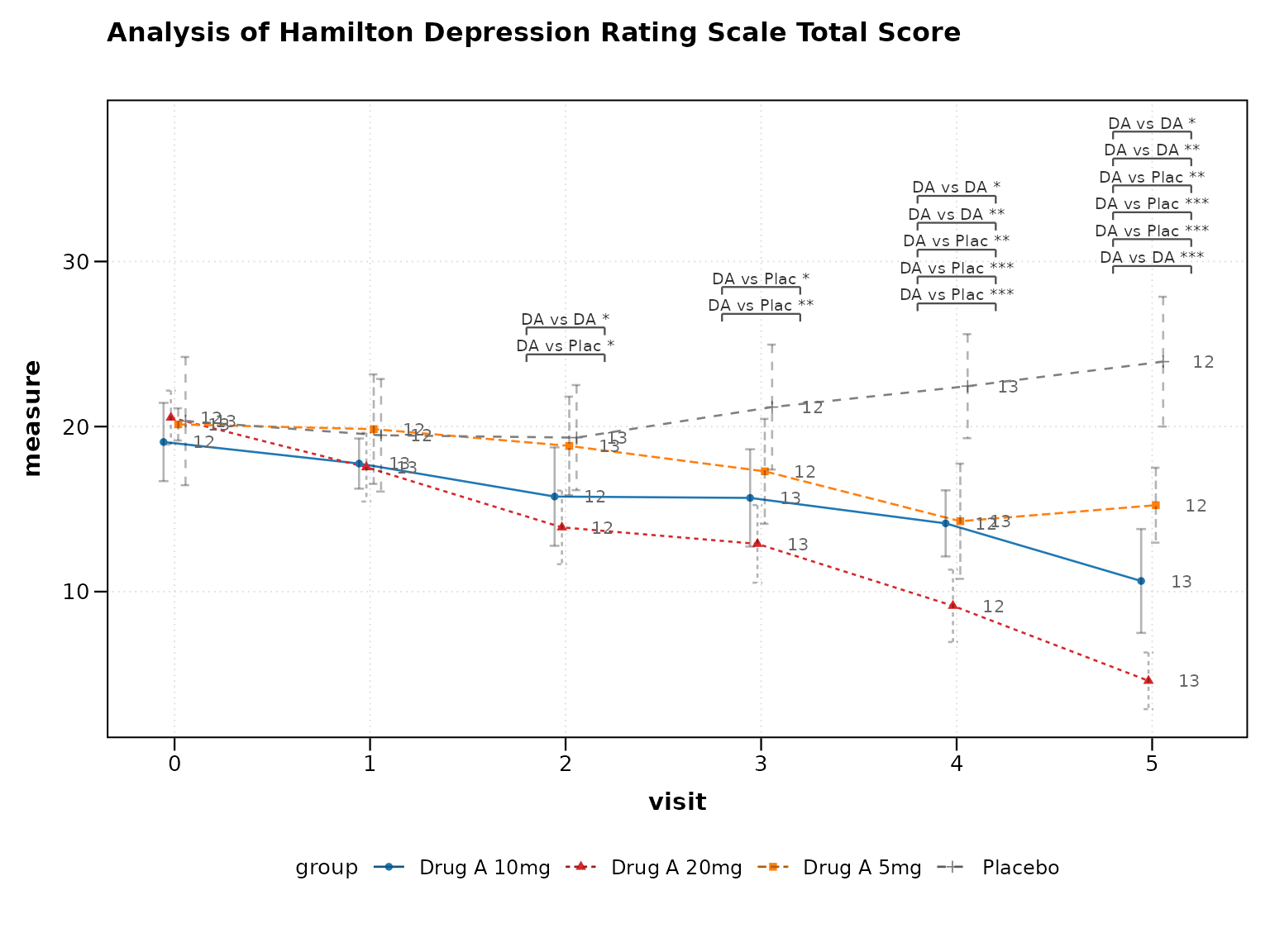

3. Parameter Standardization

Include standard parameter information:

# Check parameter consistency
params <- cdisc_data %>%
  select(PARAM, PARAMCD) %>%
  distinct()

print(params)
#> # A tibble: 1 × 2
#>   PARAM                                        PARAMCD
#>   <chr>                                        <chr>
#> 1 Hamilton Depression Rating Scale Total Score HAMDTOT

# Use parameter in titles
p7 <- lplot(
  cdisc_data,
  form = AVAL ~ AVISITN | TRT01P,
  cluster_var = "USUBJID",
  baseline_value = 0,
  clinical_mode = TRUE,
  title = paste("Analysis of", unique(cdisc_data$PARAM))
)

print(p7)

4. Baseline Definition

Clearly define baseline in CDISC terms:

# Baseline should be clearly identified
baseline_info <- cdisc_data %>%
  filter(AVISITN == 0) %>%
  summarise(
    n_subjects = n_distinct(USUBJID),
    baseline_visit = unique(VISIT)
  )

cat("Baseline Definition:", baseline_info$baseline_visit, "\n")
#> Baseline Definition: Baseline
cat("Subjects with Baseline:", baseline_info$n_subjects, "\n")
#> Subjects with Baseline: 50

Validation and Quality Control

Data Quality Checks

# Check for CDISC compliance issues
qc_results <- cdisc_data %>%
  summarise(
    # Check for missing required variables
    has_usubjid = "USUBJID" %in% names(.),
    has_avisitn = "AVISITN" %in% names(.),
    has_aval = "AVAL" %in% names(.),
    has_trt01p = "TRT01P" %in% names(.),

    # Check for data completeness
    missing_aval = sum(is.na(AVAL)),
    missing_chg = sum(is.na(CHG)),

    # Check visit structure
    baseline_visits = sum(AVISITN == 0),
    max_visit = max(AVISITN, na.rm = TRUE)
  )

print(qc_results)
#> # A tibble: 1 × 8
#>   has_usubjid has_avisitn has_aval has_trt01p missing_aval missing_chg
#>   <lgl>       <lgl>       <lgl>    <lgl>             <int>       <int>
#> 1 TRUE        TRUE        TRUE     TRUE                  0          50
#> # ℹ 2 more variables: baseline_visits <int>, max_visit <dbl>

Regulatory Readiness Checklist

# Regulatory submission checklist
checklist <- list(
  "USUBJID present" = "USUBJID" %in% names(cdisc_data),
  "AVISITN standardized" = is.numeric(cdisc_data$AVISITN),
  "Treatment coded" = "TRT01P" %in% names(cdisc_data),
  "Population flags" = all(c("SAFFL", "FASFL") %in% names(cdisc_data)),
  "CHG calculated" = "CHG" %in% names(cdisc_data),
  "Parameters defined" = "PARAM" %in% names(cdisc_data)
)

# Print checklist
for(item in names(checklist)) {
  status <- ifelse(checklist[[item]], "✓", "✗")
  cat(status, item, "\n")
}
#> ✓ USUBJID present
#> ✓ AVISITN standardized
#> ✓ Treatment coded
#> ✓ Population flags
#> ✓ CHG calculated
#> ✓ Parameters defined

Summary

The zzlongplot package supports CDISC compliance through:

Automatic Recognition: Built-in support for CDISC variable names
ADaM Standards: Compliance with Analysis Data Model requirements
Quality Controls: Data validation and compliance checking
Regulatory Ready: Professional output suitable for submissions

Key CDISC features: - Standard variable name recognition (USUBJID, AVISITN, AVAL, TRT01P) - Automatic baseline identification and change calculation - Population flag support (SAFFL, FASFL) - Parameter standardization (PARAM, PARAMCD) - Missing data handling patterns

For implementation examples, see the Clinical Trials vignette.
